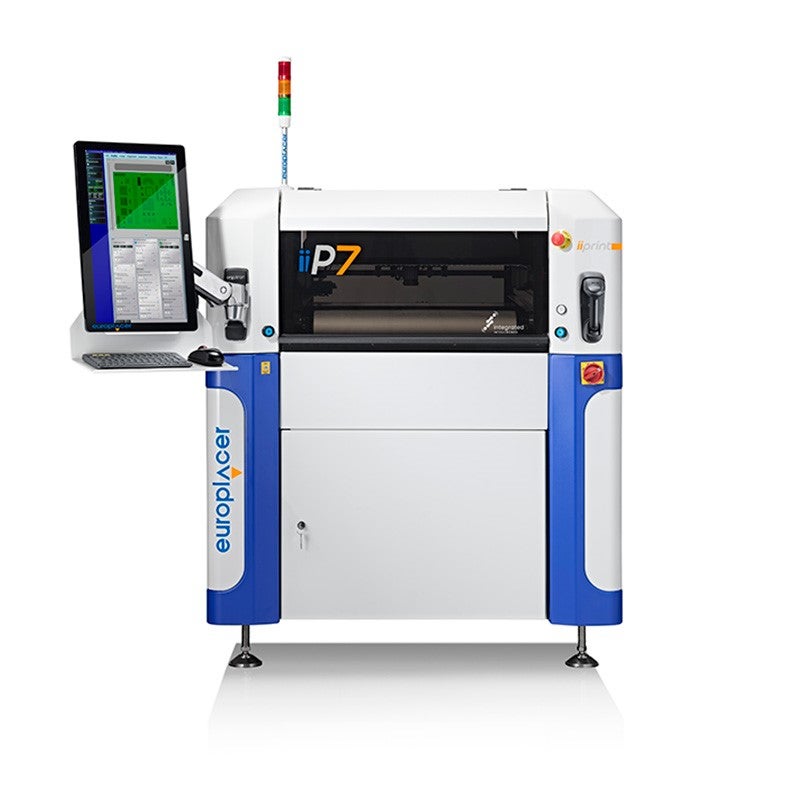

Europlacer ii-P7
The Europlacer ii-P7 is a top-tier screen printer renowned for its exceptional performance and unique features. It incorporates 1-micron linear encoders on every axis, ensuring consistent precision to deliver perfectly defined prints.
Controlled by our advanced ii-PS software, the ii-P7 seamlessly integrates into both high mix and high-volume production environments.

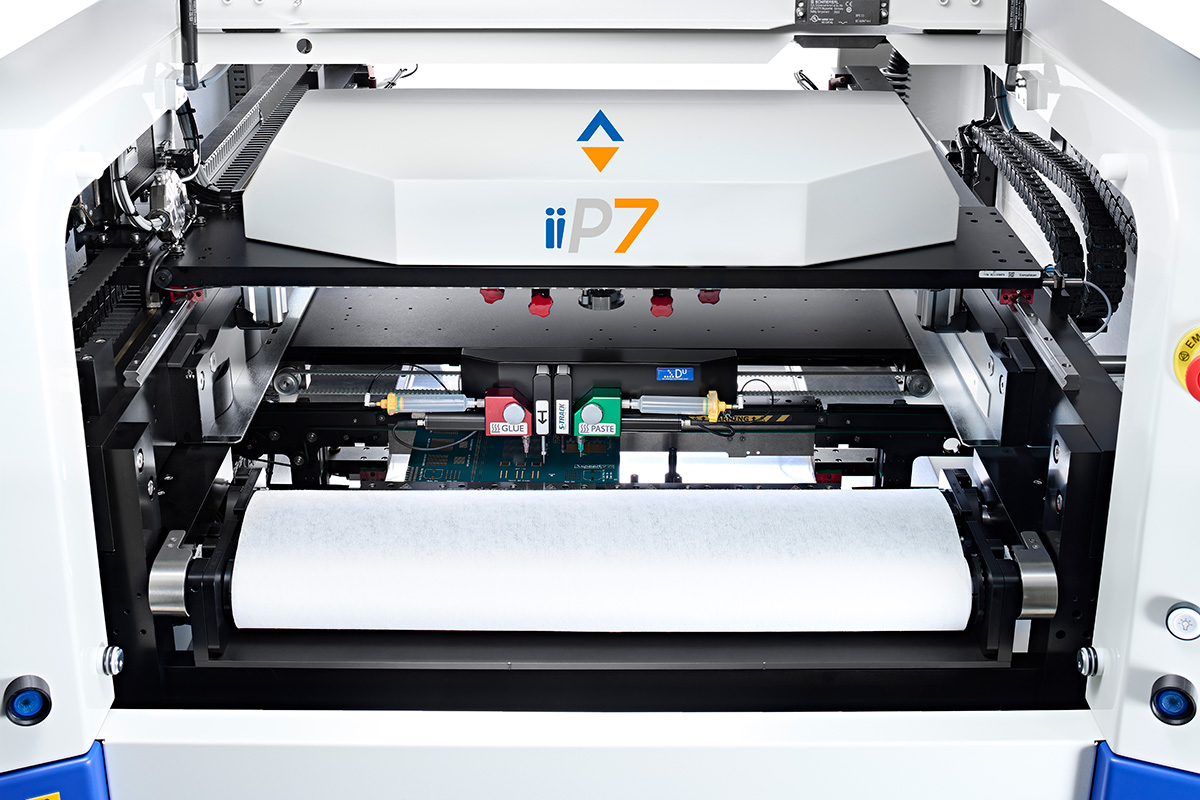

Furthermore, it provides functionalities for supplemental solder paste and adhesive dispensing via ADu+ and supports the application of barcode labels through S-Track, enabling comprehensive process traceability from the very start of the production process.
| Series | Stencil Printers |
|---|---|
| fielddefinition.productarea.model.name | Europlacer ii-P7 |
| PCB size | 45-610 mm |
| Data import | SMEMA compatible |
| Stencil load/unload | Automatic |
| Squeegees material | Metal or polyurethane |
| Cycle Time | 5-250mm/sek |
| Board clamping | Pneumatic foils (standard) |
| ADU | Yes |
| Includes | Three machines in one - printer, ADU and SPI. High Precision Axes, 1 Micron resolution Linear Encoders, Twin Roving Cameras, SmartCal, Distributed Control Network, User interface, Paste on Stencil inspection, Fully automatic Conveyor Adjustment, Programmable Vacuum Stencil Cleaner, Closed Loop Dual Squeegee control, Auto Stencil Load and eject, Modular Conveyor |
